DIY Electronic Kit 1801 SMT SMD Component Soldering Project Practice Suite FM Radio Transmitter Board Module Welding Learning

DIY Kit 1801 Components SMT SMD Soldering Practice Kit 15 LEDs Flashing Controller Board Electronic Components Weld Practice Suit

Description:

- 1801 patch 15 way lantern controller patch welding practice kit: has the following 10 major functions. Training, exams, and competitions are preferred.
- Interesting - add 4-6V after the circuit is installed, it is a 7-channel binary counting light + 8 way water light, novelty fun.
- Training - a total of 76 components (excluding pin headers), 240 solder joints, easy to train speed.
- Comprehensiveness - The circuit has 8 types of commonly used components and is familiar with the use of more components.
- Practicality - The circuit has a specific function and is an electronic work.
- Simulation - with simulation questions, can be used for competition, selection, exams and other references.
- Savings - can be used repeatedly for desoldering to increase usage.
- Flexibility - Each component is numbered, with no parameters, and can be flexibly adjusted.
- Intelligent - the circuit can be energized to intelligently determine whether the welding is normal, and the fault point has a light indication.
- Innovative - the circuit design is novel and the difficulty is moderate.
- Technical - The circuit has a unique working principle, provides a complete schematic, and has 10 test points to facilitate various tests, which is conducive to improving the theoretical level.

Feature:

Work Voltage: DC 4-6V

Packing List:

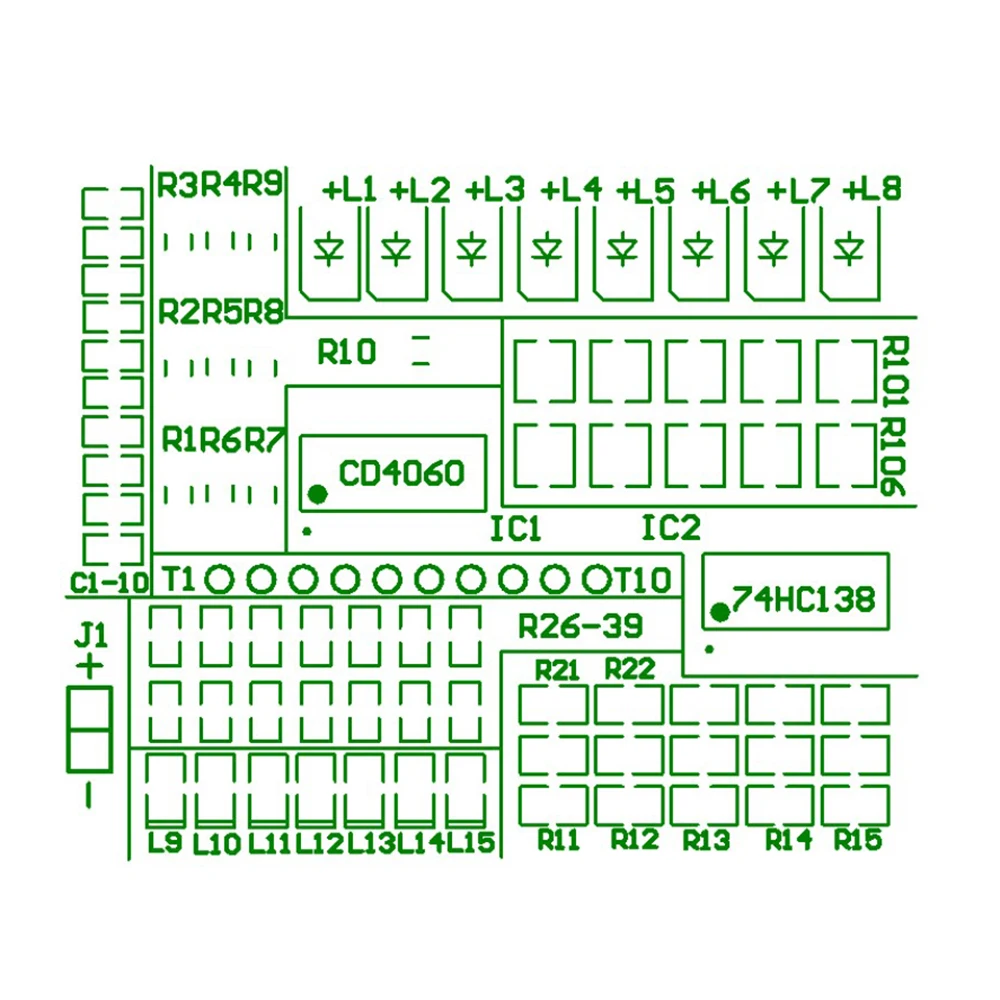

Component Layout:

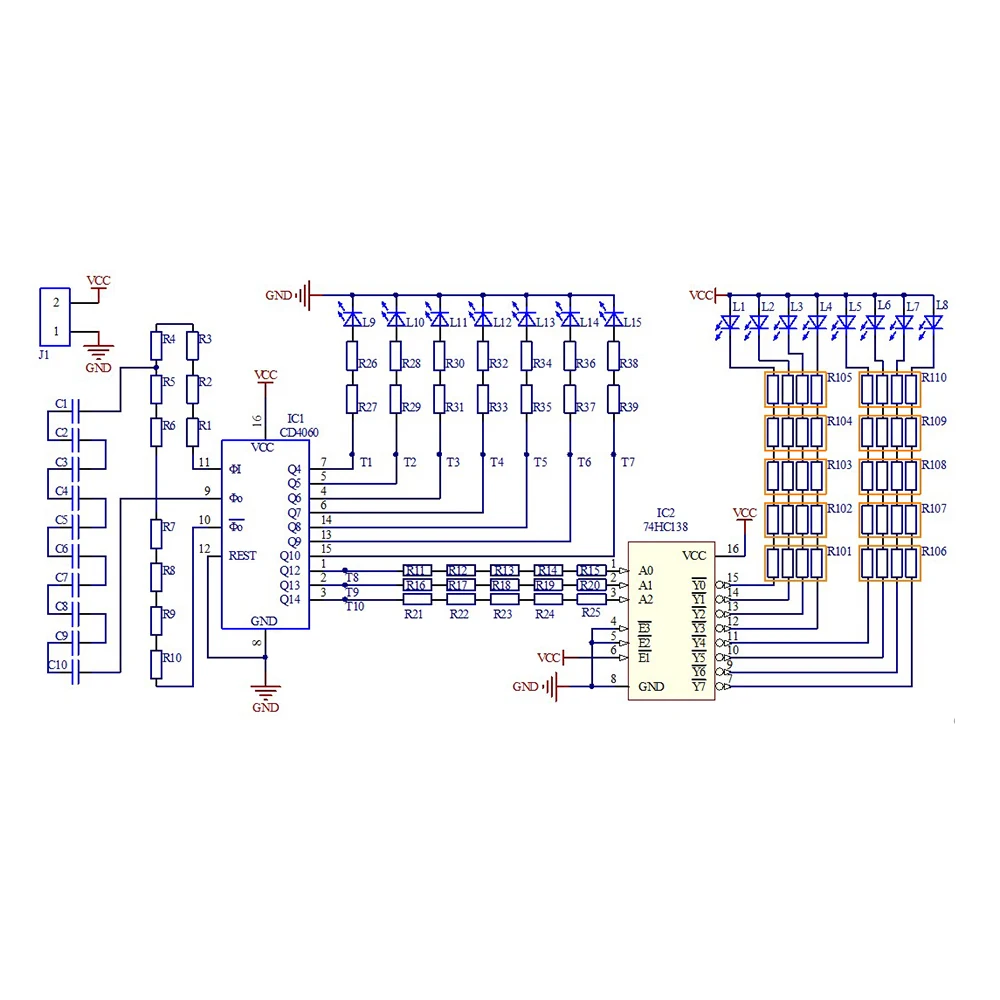

Schematic:
